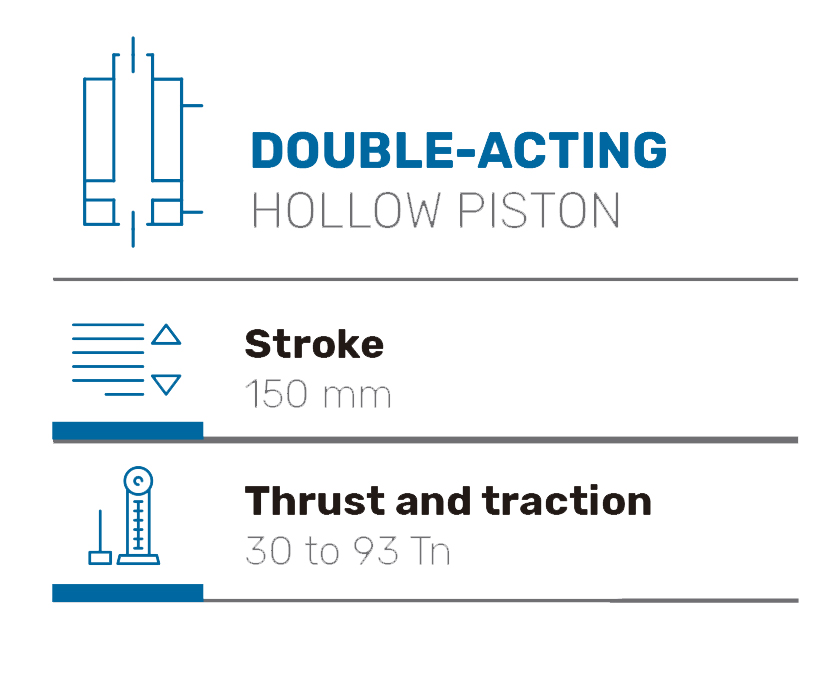

HOLLOW CYLINDER

DOUBLE-ACTING

DH

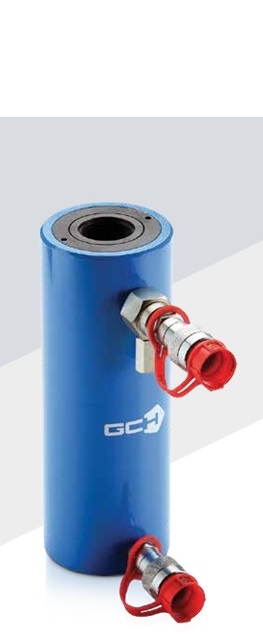

  • Hollow piston cylinder.
  • Built-in safety valve to prevent overpressure.
  • Nitrated piston, central tube and lead-in top to prevent rust and increase wear resistance.
  • The top head prevents the piston extraction and withstands all the power of the cylinder.
  • Interchangeable saddles — flat, threaded or solid.
  • High-flow female quick plug coupling with dust cover as standard in all models.
  • Special stroke lengths on demand.
