Threaded hollow saddles and grooved solid saddles available.

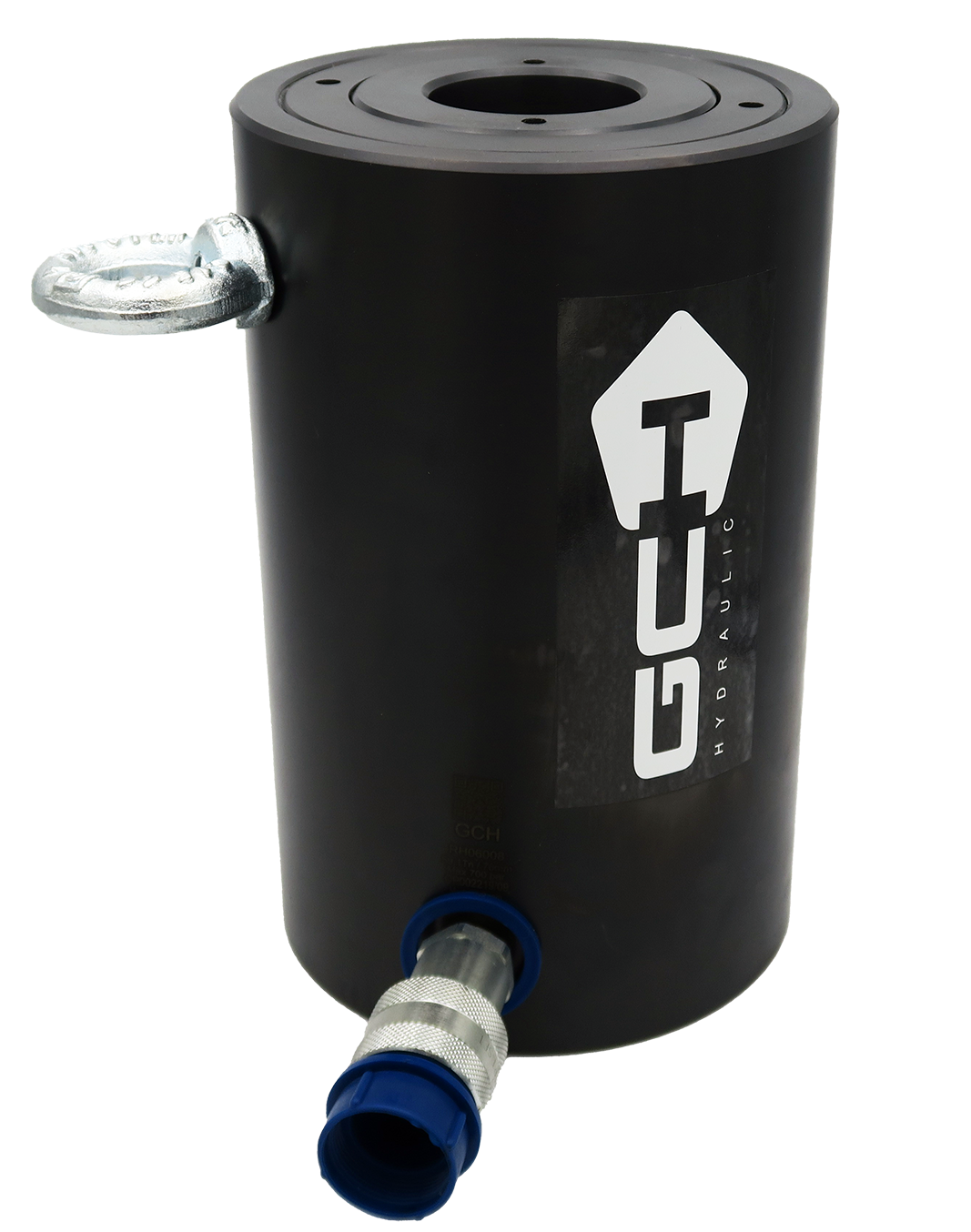

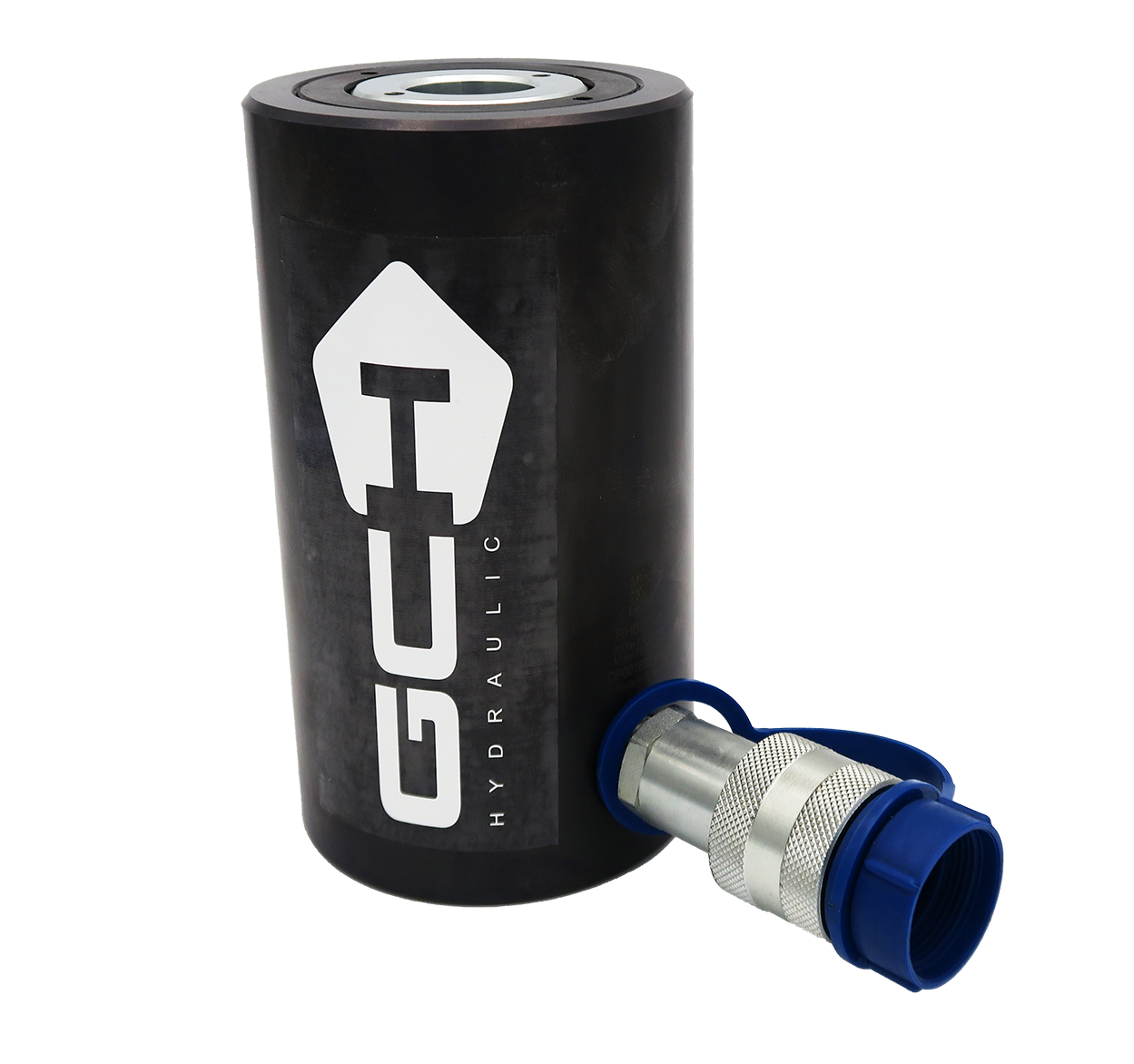

Aluminium Hollow Single-Acting Cylinders — RHA

HOLLOW CYLINDER

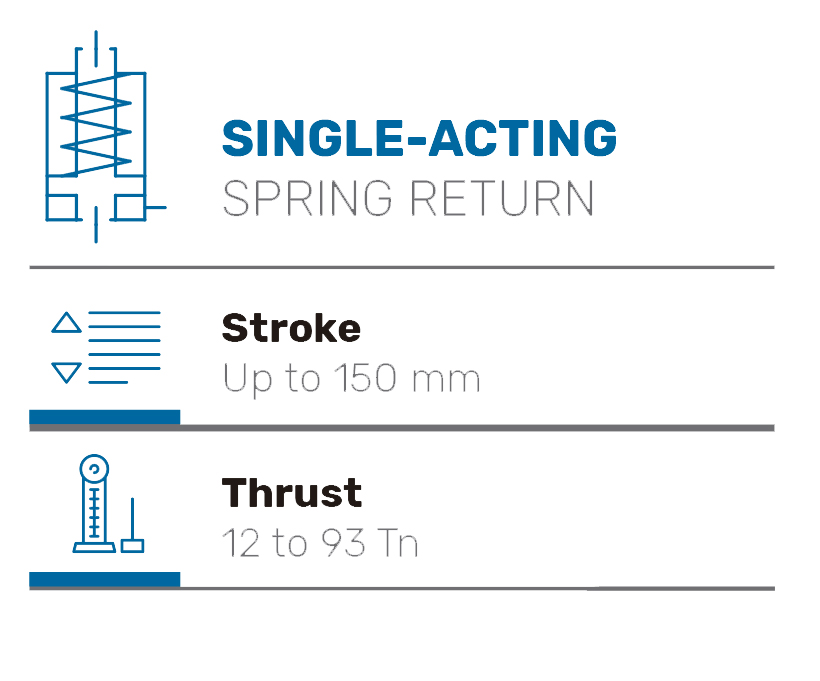

SINGLE-ACTING

RH
  • Hollow piston cylinder designed for traction and thrust jobs. Wire and bolt tensioning, removal of sleeves and bearings.
  • Nitrated piston, central tube and lead-in top to prevent rust and increase wear resistance.
  • The top head prevents the piston extraction and withstands all the power of the cylinder.
  • Interchangeable saddles — flat, threaded or solid.
  • High-flow female quick plug coupling with dust cover as standard in all models.
  • Longer strokes on demand.
